Most buyers only see the finished system: welds, tips, heat colour. But whether a system fits on the first try — and stays consistent across reorders — is decided long before welding starts. Here is the full journey a system takes through our floor, photographed in production.

1. Everything starts with the jig

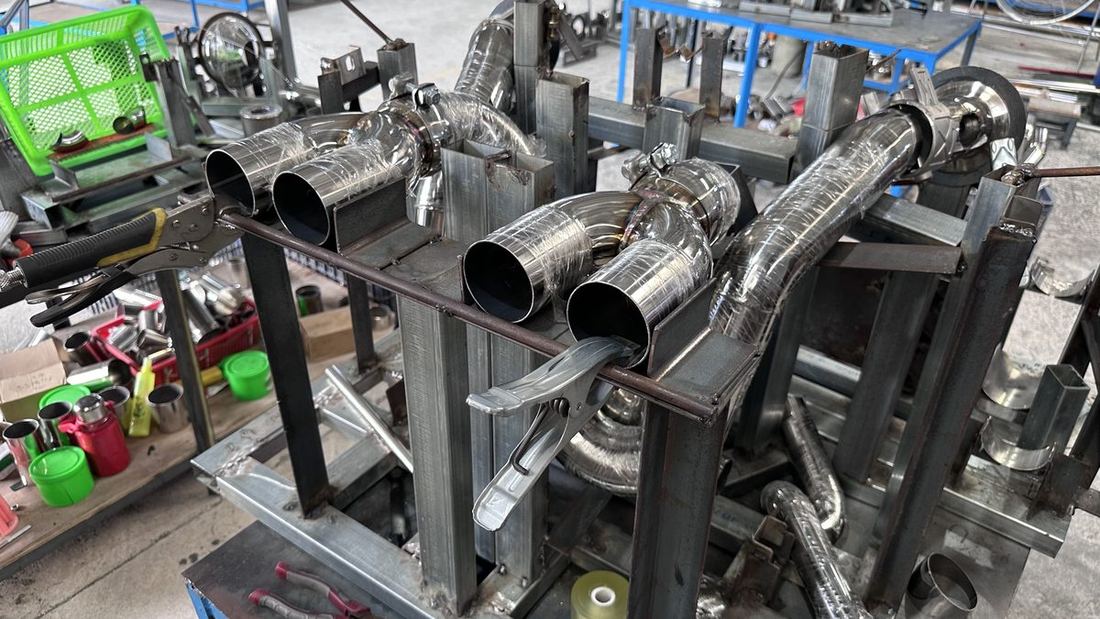

Before a single pipe is cut, we build a welding jig for the platform: a steel fixture that holds every section in its final position relative to the chassis mounting points. Ground clearance, heat paths, actuator access and tip alignment are all frozen into this frame. If the jig is right, the hundredth system matches the first. If it is wrong, no amount of welding skill will save the fitment.

2. Fitting: checking the geometry in metal

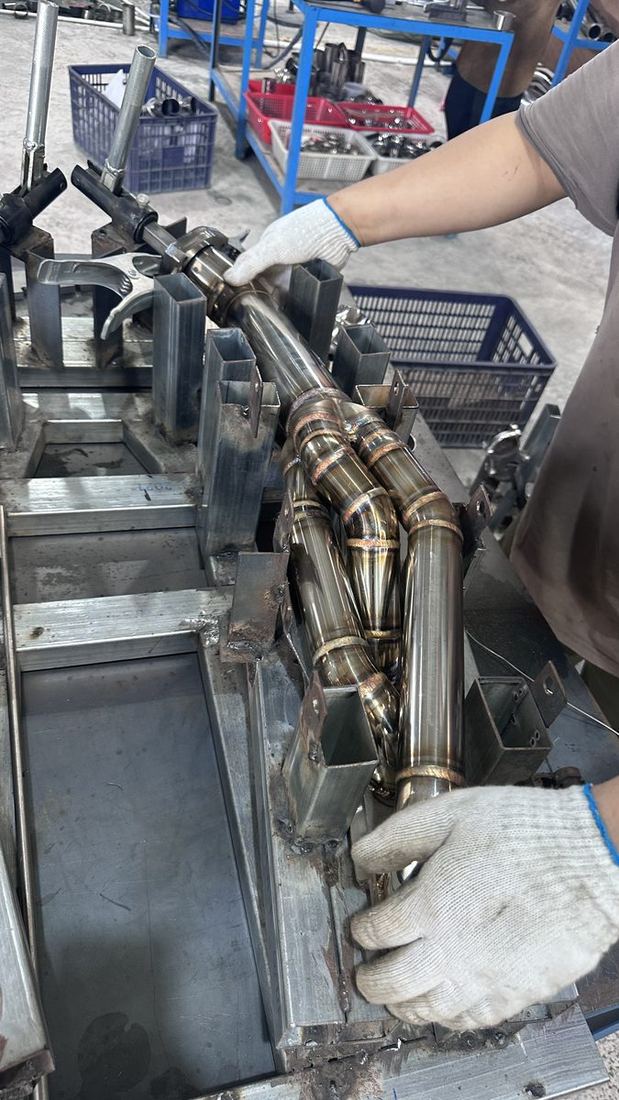

Tacked sections are placed into the fixture and dry-fitted: flanges sit flat against their mating surfaces, slip joints slide with the right interference, and clearances are checked against the chassis data. On new platforms this is where we catch routing conflicts — a line here, a small bend radius change there — cheap to fix now, expensive to fix after welding.

3. Welding: full penetration, back-purged

Every structural weld is hand TIG, done by welders who work on one product category all day. Stainless runs at higher heat input; titanium requires back-purging — inert gas on the inside of the pipe — and a lighter touch, or the weld area will contaminate and weaken. The colour banding you see on finished titanium is not decoration: it is the signature of a controlled, purged weld.

4. Valves and internals: the parts customers never see

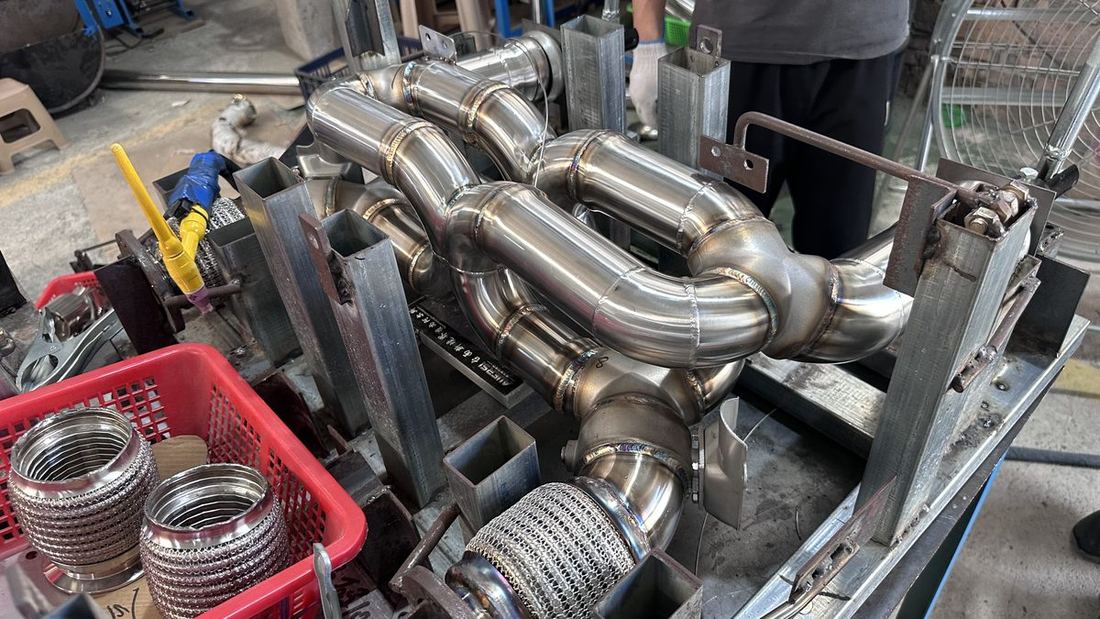

Valve pockets, actuator brackets and internal baffles are located on the jig too — their position affects both the sound curve and the clearance to underbody components. Valved systems get their actuator plumbing dry-cycled before the system leaves the jig, because a valve that binds at this stage will only get worse with heat cycling.

5. QC, then the box

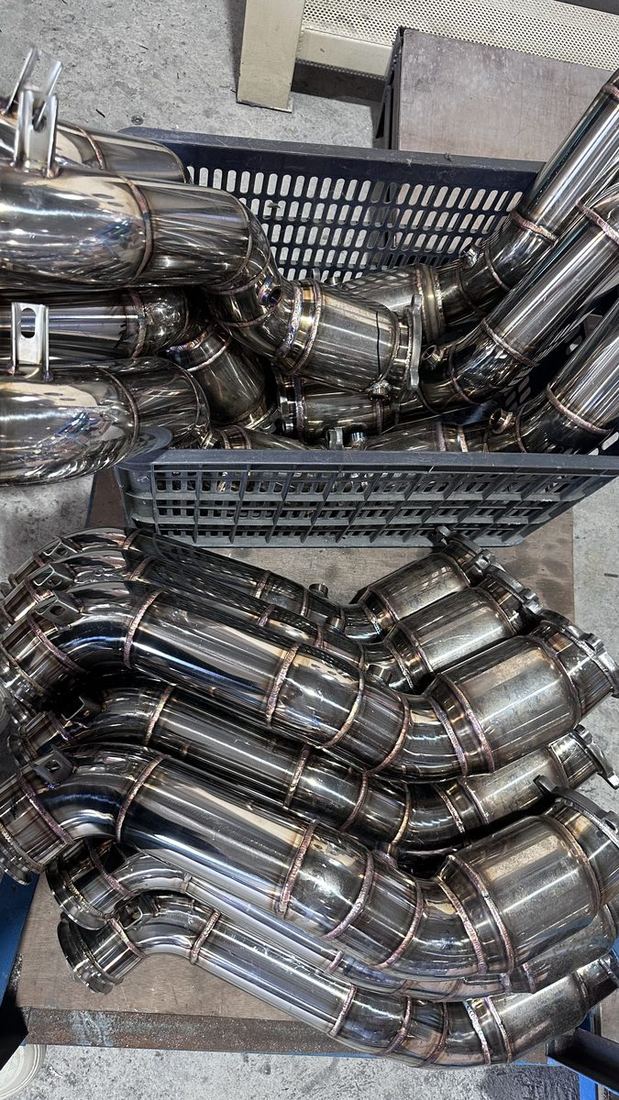

Finished systems go back onto the jig for a final fitment check, then through weld inspection and surface finishing. Each order is photographed before packing — flanges, welds, tips — so the customer can approve the goods before they ship. Then foam protection, export cartons, and into the container or the air shipment.

Why this matters when you choose a supplier

When we talk with new distributors, the questions that predict a good long-term relationship are rarely about price. They are about jigs, fixture-controlled production, weld procedures and photo records — the things that make reorder number three identical to order number one. We covered how to check any supplier on these points in our supplier evaluation checklist.

The jig is the product. The weld is the signature. The photo record is the promise.

If you want to see this process running on your platform, ask us for a production photo set of a current order — or come visit the floor in Meizhou.
